Gas Analyzer

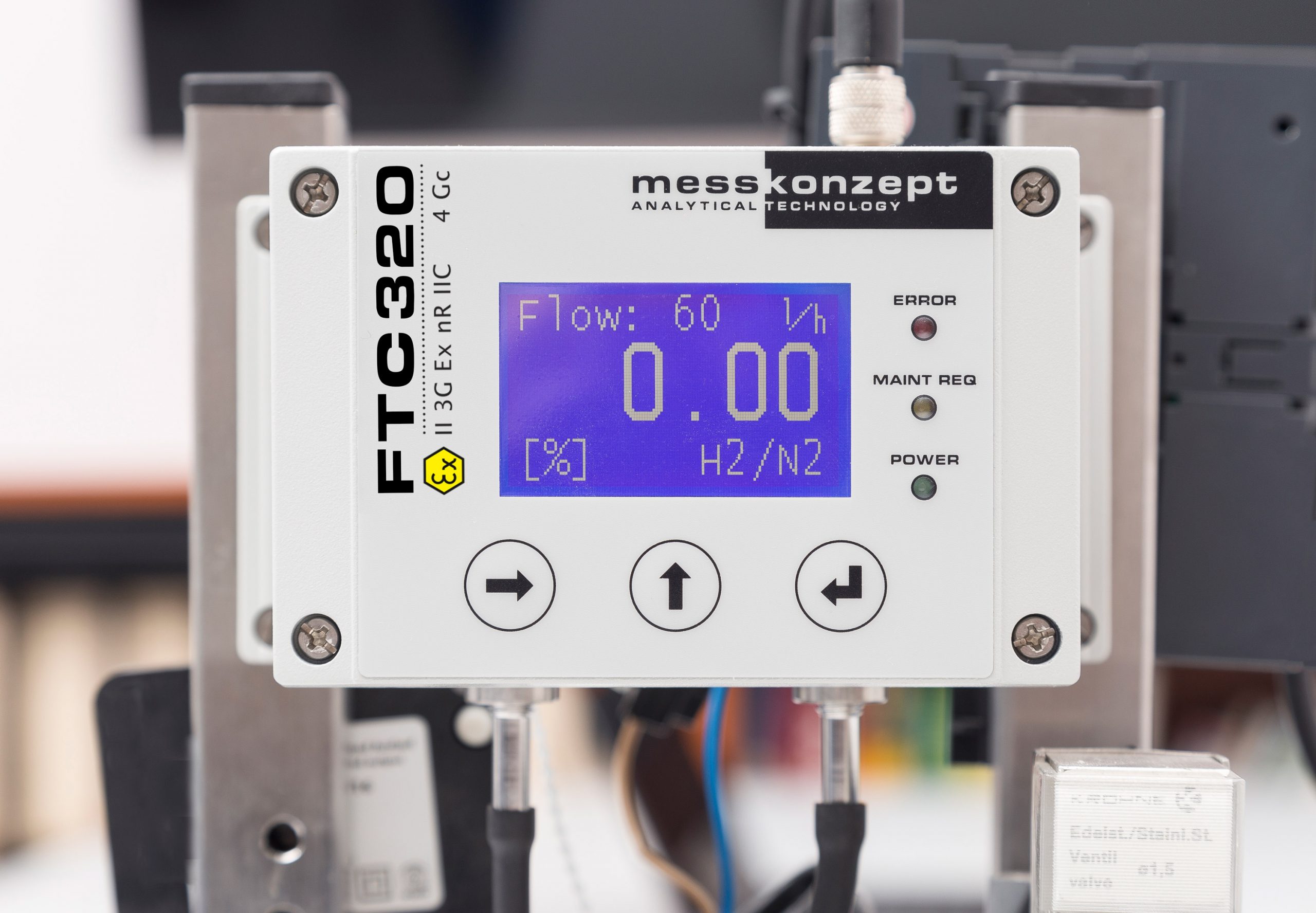

FTC 320

Application:

Precise analysis of (quasi) binary gas mixtures
Very high precision e.g. H₂ in N₂: 30ppm
H₂ in air, He in Ar, CO₂ in N₂ etc.
Measurement according to the thermal conductivity principle
Solution of up to 99 tasks integrated

Communication:

  Key-controlled menu navigation with display
  Current output: 1 x 0 / 4-20mA
  Voltage output: 2 x 0-10V
  Control and signal reading via RS232
   3 limit and alarm relays
  Voltage input

Construction:

Dimensions (WxHxD in mm): (145 x 80 x 85)
Weight: 1800 g
Protection class: IP65
Connection: 6mm pipe
Pressure-proof: 20bar absolute

OPTIONS

Operation in EX zone

Zone Ex II 3G Ex nR IIC T4 Gc
Protection Against Corrosion

Protection of the sensor element due conformal coating with inert plastic.
Measurement of Combustible Gases

In the unlikely case of a gas leak in the analyzer, an explosive mixture may form inside the sealed housing (IP65). Completely filling the housing with glass beads minimizes the cavities and eliminates the hazard.
Integrated Pressure Measurement

Measurement of the absolute pressure in order to compensate the pressure influence on the measuring signal.

Pressure range: 800-2000 mbar absolute
Cross-sensitivity Compensation

Cross-sensitivity compensation for non-(quasi-) binary gas mixtures by feeding in up to two externally measured variables.This allows for complete determination of complex gas mixtures in combination with the thermal conductivity measurement.
Protection Against Condensate and Dust

The sensor element isprotected by a sintered frit with pore sizes in the micron range, which is largely impermeable to polar liquids and dust.
Integrated Flow Measurement

Gas-independent flow measurement for binary mixtures integrated into the detector Flow range from 0 to 120 l/h.

Pressure range: 800 – 2000 mbar absolute
Integrated Infrared Measurement

Selective measurement of up to three infrared active gases within a mixture. In combination with the thermal conductivity measurement this allows for complete determination of complex gas mixtures.

Pressure range: 800 – 2000 mbar absolute
Multi Gas Mode

Sequential measurement of up to 16 (quasi-) binary gas mixtures integrated in one device, for example: H₂ in N₂, He in N₂, C0₂ in N₂, N₂ in Ar, O₂ in N₂, O₂ in Ar, H₂ in Ar, He in Ar, CO₂ in Ar, CH₄ in N₂, CH₄ in Ar, Ar in O₂, O₂ in CO₂. Others upon request.
Integrated Moisture Measurement

Selective capacitive measurement of the absolute humidity in order to exactly determine the composition of ternary gas mixtures with water content.
Selective oxygen (O₂) analysise

An additional module enables a selective oxygen measurement

More Information

Transmitter

FTC 130

Application:

Extractive analysis of (quasi-) binary gas mixtures
H2 in air, He in Ar, CO2 in N2 etc.
Measurement by means of thermal conductivity
Solution for up to 16 tasks integrated

Communication:

  Key-controlled menu navigation with display
  Zero and end point adjustment on the device (button)
  Current output: 2 x 0/4-20mA
  Voltage output: 2 x 0-10V
  Control and signal reading via RS232
  3 limit and alarm relays

Construction:

Dimensions (WxHxD in mm): (144 x 50 x 50)
Weight: to 700 g
Protection class: IP65
Connection: 6mm pipe
Pressure-proof: 20bar absolute

OPTIONS

Protection Against Corrosion

Protection of the sensor element due conformal coating with inert plastic.
Measurement of Combustible Gases

In the unlikely case of a gas leak in the analyzer, an explosive mixture may form inside the sealed housing (IP65). Completely filling the housing with glass beads minimizes the cavities and eliminates the hazard.
Integrated Pressure Measurement

Measurement of the absolute pressure in order to compensate the pressure influence on the measuring signal.

Pressure range: 800-2000 mbar absolute
Cross-sensitivity Compensation

Cross-sensitivity compensation for non-(quasi-) binary gas mixtures by feeding in up to two externally measured variables.This allows for complete determination of complex gas mixtures in combination with the thermal conductivity measurement.
Protection Against Condensate and Dust

The sensor element isprotected by a sintered frit with pore sizes in the micron range, which is largely impermeable to polar liquids and dust.
Integrated Flow Measurement

Gas-independent flow measurement for binary mixtures integrated into the detector Flow range from 0 to 120 l/h.

Pressure range: 800 – 2000 mbar absolute
Integrated Infrared Measurement

Selective measurement of up to three infrared active gases within a mixture. In combination with the thermal conductivity measurement this allows for complete determination of complex gas mixtures.

Pressure range: 800 – 2000 mbar absolute
Multi Gas Mode

Sequential measurement of up to 16 (quasi-) binary gas mixtures integrated in one device, for example: H₂ in N₂, He in N₂, C0₂ in N₂, N₂ in Ar, O₂ in N₂, O₂ in Ar, H₂ in Ar, He in Ar, CO₂ in Ar, CH₄ in N₂, CH₄ in Ar, Ar in O₂, O₂ in CO₂. Others upon request.
Integrated Moisture Measurement

Selective capacitive measurement of the absolute humidity in order to exactly determine the composition of ternary gas mixtures with water content.

More Information

OEM Detectors

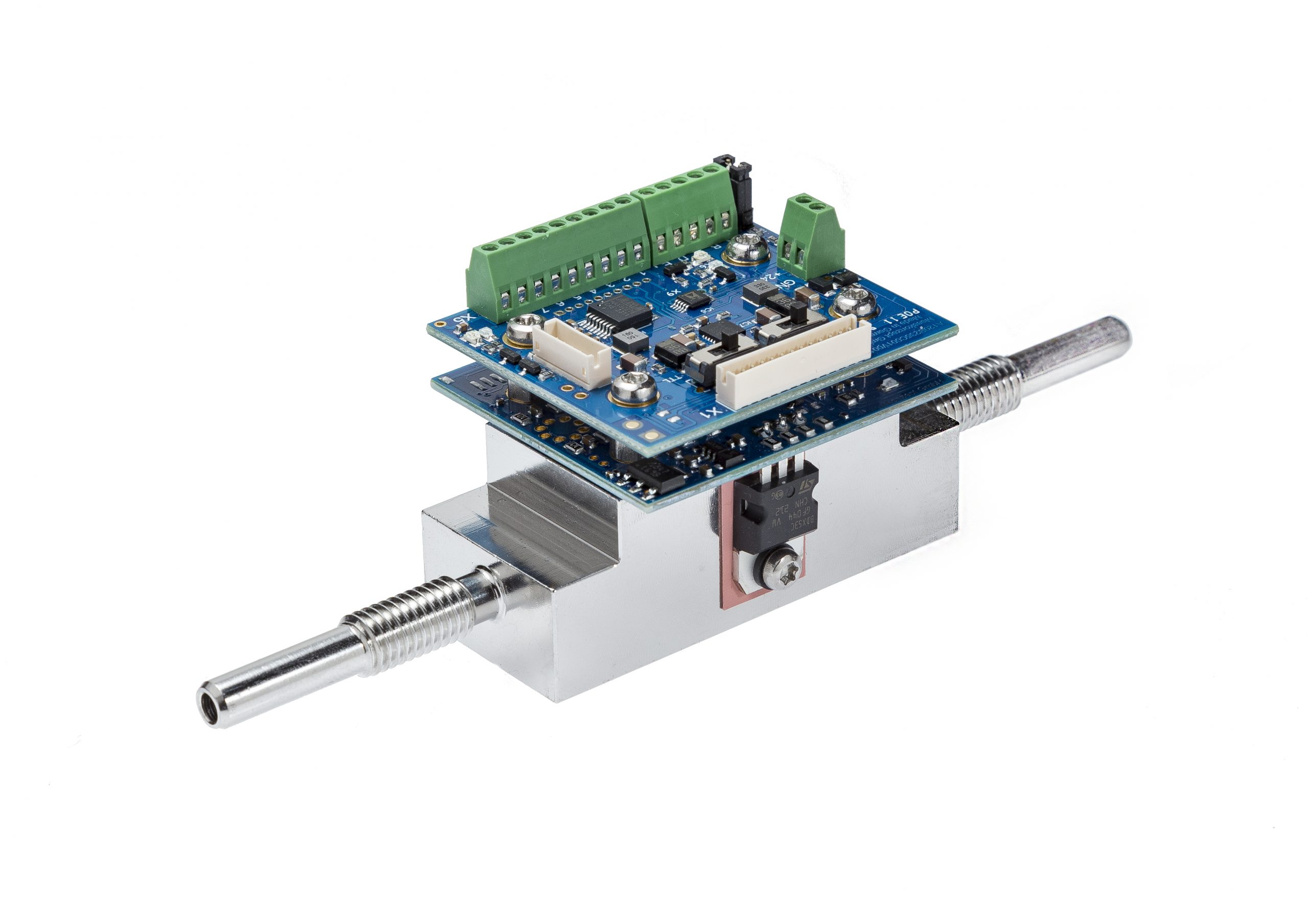

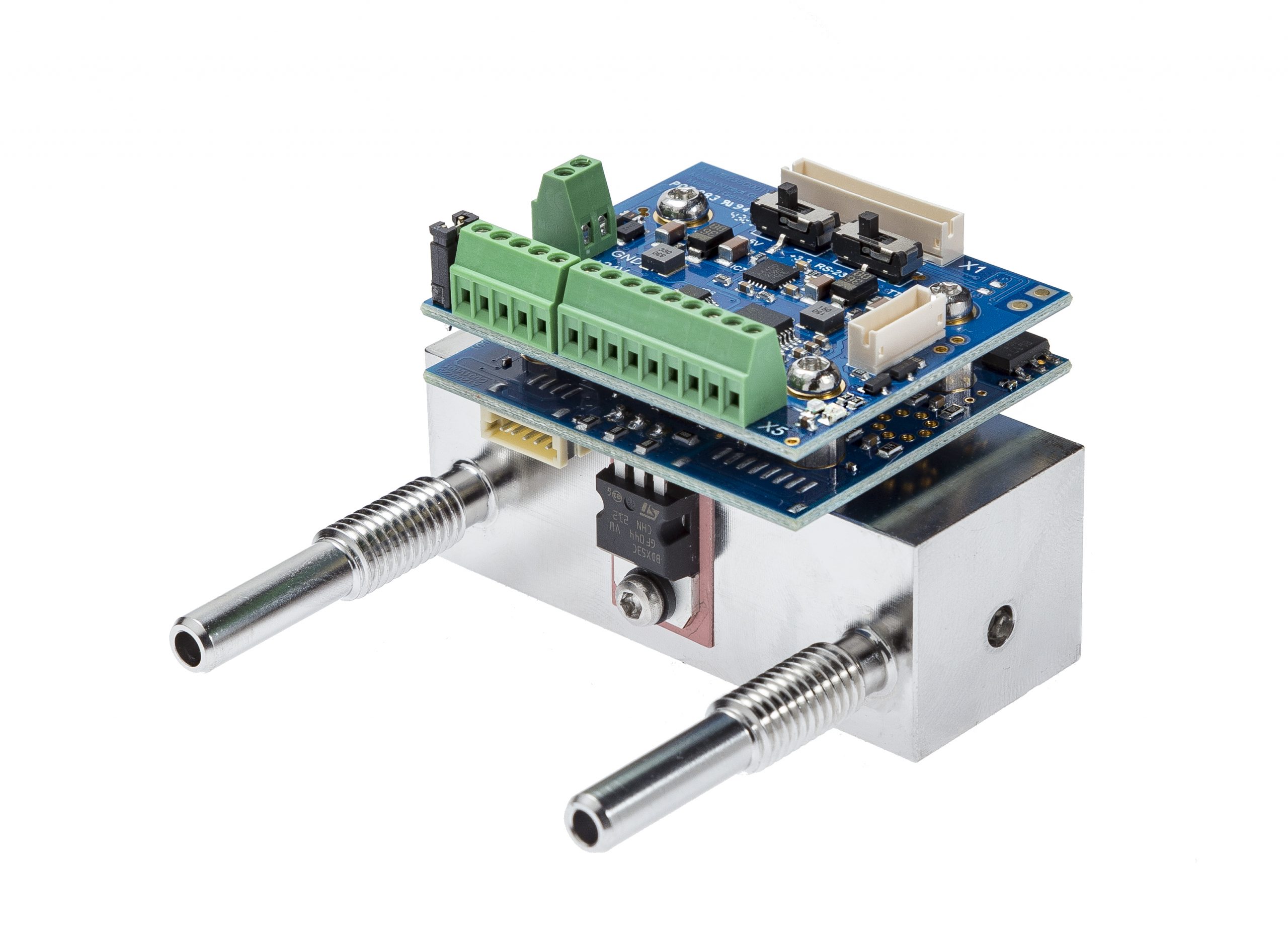

FTC 130-OEM

Application:

Detector for installation in customer-owned devices
Precise analysis of (quasi-) binary gas mixtures
H₂ in air, He in Ar, CO₂ in N₂ etc.
Analysis by means of thermal conductivity
Solution for up to 16 tasks integrated

Communication:

  Key-controlled menu navigation with display
  Current output: 1 x 0/4-20mA
  Voltage output: 2 x 0-10V
  Control and signal reading via RS232
  3 limit and alarm relays

Construction:

Dimensions (WxHxD in mm): (144 x 42 x 40)
Weight: to 305 g
Protection class: IP00
Connection: 6mm pipe
Pressure-proof: 20bar absolute

OPTIONS

Protection Against Corrosion

Protection of the sensor element due conformal coating with inert plastic.
Measurement of Combustible Gases

In the unlikely case of a gas leak in the analyzer, an explosive mixture may form inside the sealed housing (IP65). Completely filling the housing with glass beads minimizes the cavities and eliminates the hazard.
Integrated Pressure Measurement

Measurement of the absolute pressure in order to compensate the pressure influence on the measuring signal.

Pressure range: 800-2000 mbar absolute
Cross-sensitivity Compensation

Cross-sensitivity compensation for non-(quasi-) binary gas mixtures by feeding in up to two externally measured variables.This allows for complete determination of complex gas mixtures in combination with the thermal conductivity measurement.
Protection Against Condensate and Dust

The sensor element is protected by a sintered frit with pore sizes in the micron range, which is largely impermeable to polar liquids and dust.
Integrated Flow Measurement

Gas-independent flow measurement for binary mixtures integrated into the detector Flow range from 0 to 120 l / h.

Pressure range: 800 – 2000 mbar absolute
Integrated Infrared Measurement

Selective measurement of up to three infrared active gases within a mixture. In combination with the thermal conductivity measurement this allows for complete determination of complex gas mixtures.

Pressure range: 800 – 2000 mbar absolute
Multi Gas Mode

Sequential measurement of up to 16 (quasi-) binary gas mixtures integrated in one device, for example: H₂ in N₂, He in N₂, C0₂ in N₂, N₂ in Ar, O₂ in N₂, O₂ in Ar, H₂ in Ar, He in Ar, CO₂ in Ar, CH₄ in N₂, CH₄ in Ar, Ar in O₂, O₂ in CO₂. Others upon request.
Integrated Moisture Measurement

Selective capacitive measurement of the absolute humidity in order to exactly determine the composition of ternary gas mixtures with water content.

More Information

Services

Measuring systems & sample preparation

Consultation and realization of system technical solutions for sample preparation for the solution of the customer´s the measuring task.

OPTIONS

Protection Against Corrosion

Protection of the sensor element due conformal coating with inert plastic.
Measurement of Combustible Gases

In the unlikely case of a gas leak in the analyzer, an explosive mixture may form inside the sealed housing (IP65). Completely filling the housing with glass beads minimizes the cavities and eliminates the hazard.
Integrated Pressure Measurement

Measurement of the absolute pressure in order to compensate the pressure influence on the measuring signal.

Pressure range: 800 – 2000 mbar absolute
Cross-sensitivity Compensation

Cross-sensitivity compensation for non-(quasi-) binary gas mixtures by feeding in up to two externally measured variables.This allows for complete determination of complex gas mixtures in combination with the thermal conductivity measurement.
Protection Against Condensate and Dust

The sensor element is protected by a sintered frit with pore sizes in the micron range, which is largely impermeable to polar liquids and dust.
Integrated Flow Measurement

Gas-independent flow measurement for binary mixtures integrated into the detector Flow range from 0 to 120 l / h.

Pressure range: 800 – 2000 mbar absolute
Integrated Infrared Measurement

Selective measurement of up to three infrared active gases within a mixture. In combination with the thermal conductivity measurement this allows for complete determination of complex gas mixtures.

Pressure range: 800 – 2000 mbar absolute
Multi Gas Mode

Sequential measurement of up to 16 (quasi-) binary gas mixtures integrated in one device, for example: H₂ in N₂, He in N₂, C0₂ in N₂, N₂ in Ar, O₂ in N₂, O₂ in Ar, H₂ in Ar, He in Ar, CO₂ in Ar, CH₄ in N₂, CH₄ in Ar, Ar in O₂, O₂ in CO₂. Others upon request.
Integrated Moisture Measurement

Selective capacitive measurement of the absolute humidity in order to exactly determine the composition of ternary gas mixtures with water content.

More Information

Services

If you can not find a suitable description our development team will work out a solution for your application.

Know-how

In the section Know-how you will find background information about the individual technologies

Applications

Messkonzept GmbH develops individual solutions for a large number of customers. For examples, please see Applications.

Latest news and developments in the field of gas analysis from Messkonzept GmbH.
